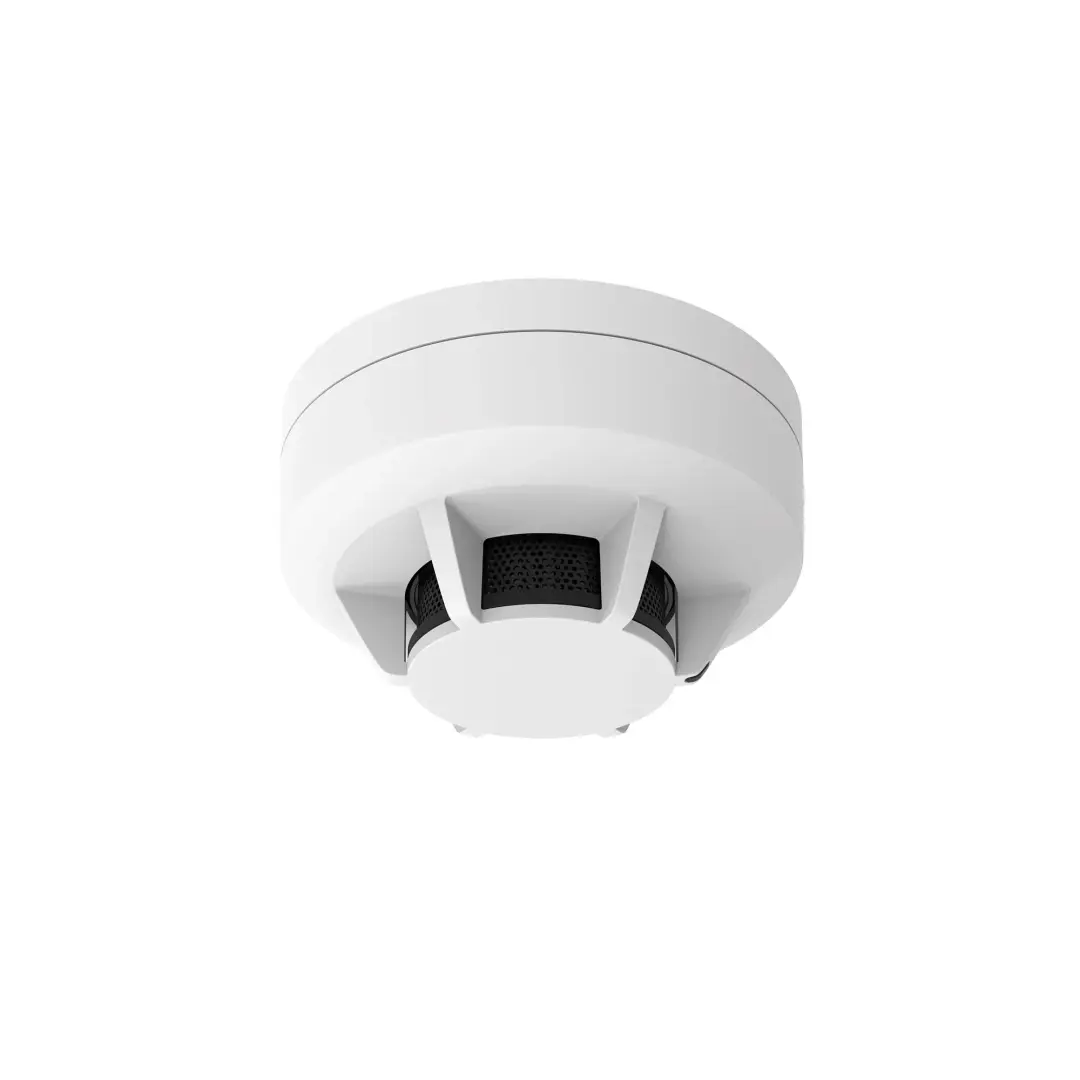

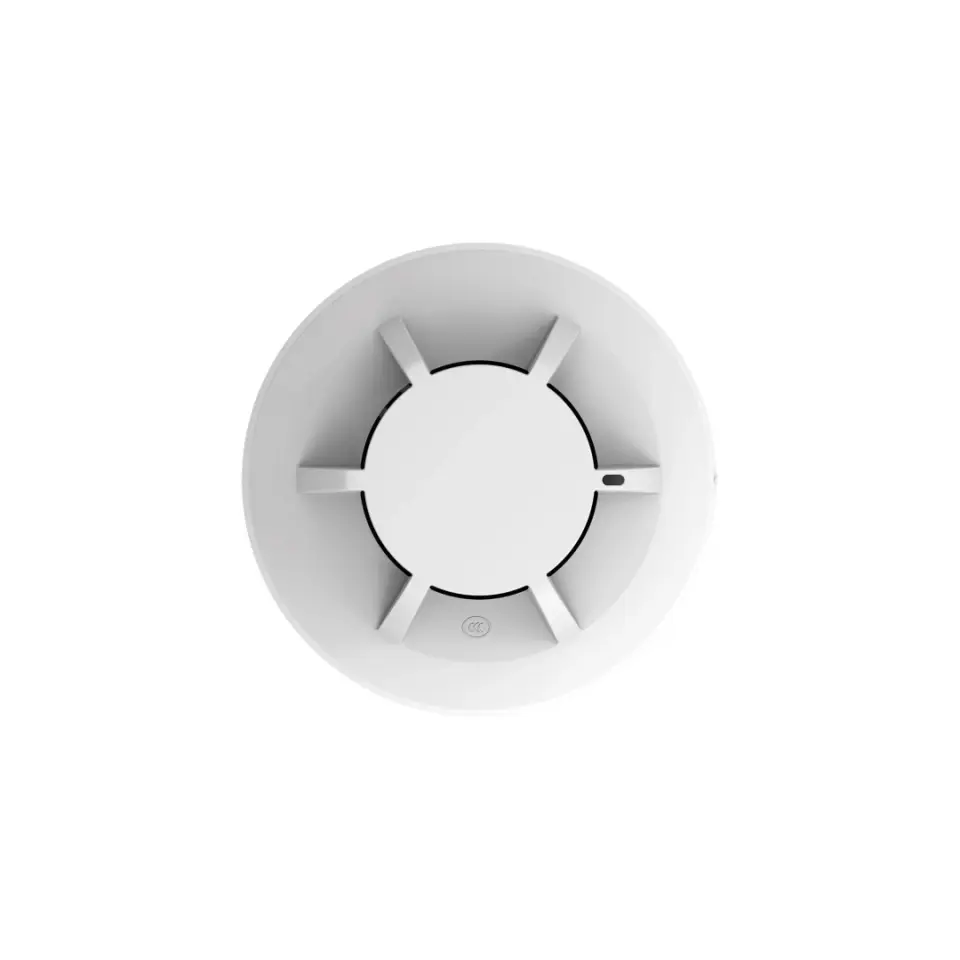

Adreslenebilir Duman Dedektörü DHI-HY-1301
Kategori
Marka
Stok Kodu
DHI-HY-1301
Barkod Kodu
DHI-HY-1301-00294
Garanti Süresi
24 Ay
|
DHI-HY-1301 |
|
|
Wiring |
Two-wire, polarity-free |
|
Addressing Method |
Electrical encoder |
|
Address Range |
1–254 |
|
Communication Distance |
≤ 1500 m (4921.26 ft) |
|
Function |
|
|
Indicator |
Red Polling: Flash 6 seconds Alarm: Remain lit Fault: Flash 2 seconds |
|
Power |
|
|
Operating Voltage |
24V DC |
|
Current |
Monitoring current: ≤ 180μA Maximum operating current: ≤ 280μA |
|
Environment |
|
|
Operating Temperature |
-10°C to +50°C (+14°F to +122°F) |
|
Storage Temperature |
-20°C to +65°C (–4°F to +149°F) |
|
Operating Humidity |
≤ 95% RH (no condensation) |
|
Appearance |
|
|
Color |
White |
|
Dimensions (with base) |
Φ100 mm × 50 mm (Φ 3.00" × 1.50") |
|
Weight (with base) |
102 g (0.22 lb) |
|
Certifications |
|
|
Certifications |
EN54-7 |
