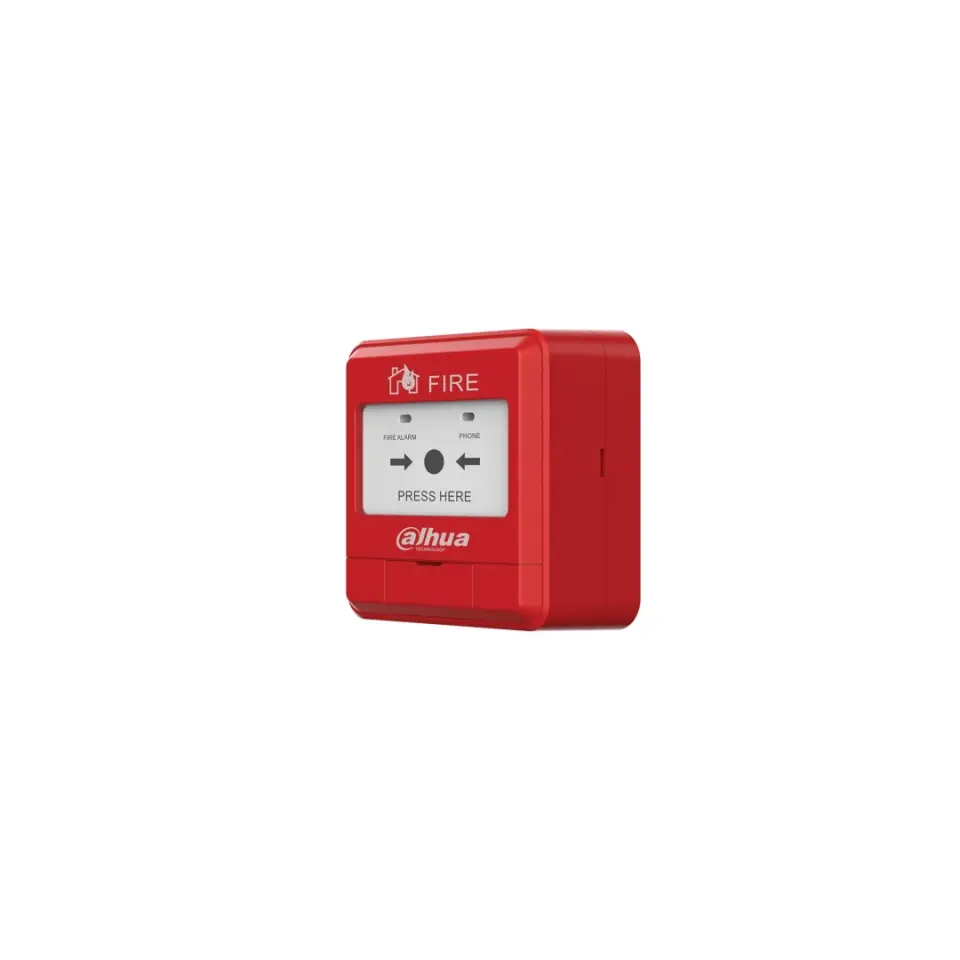

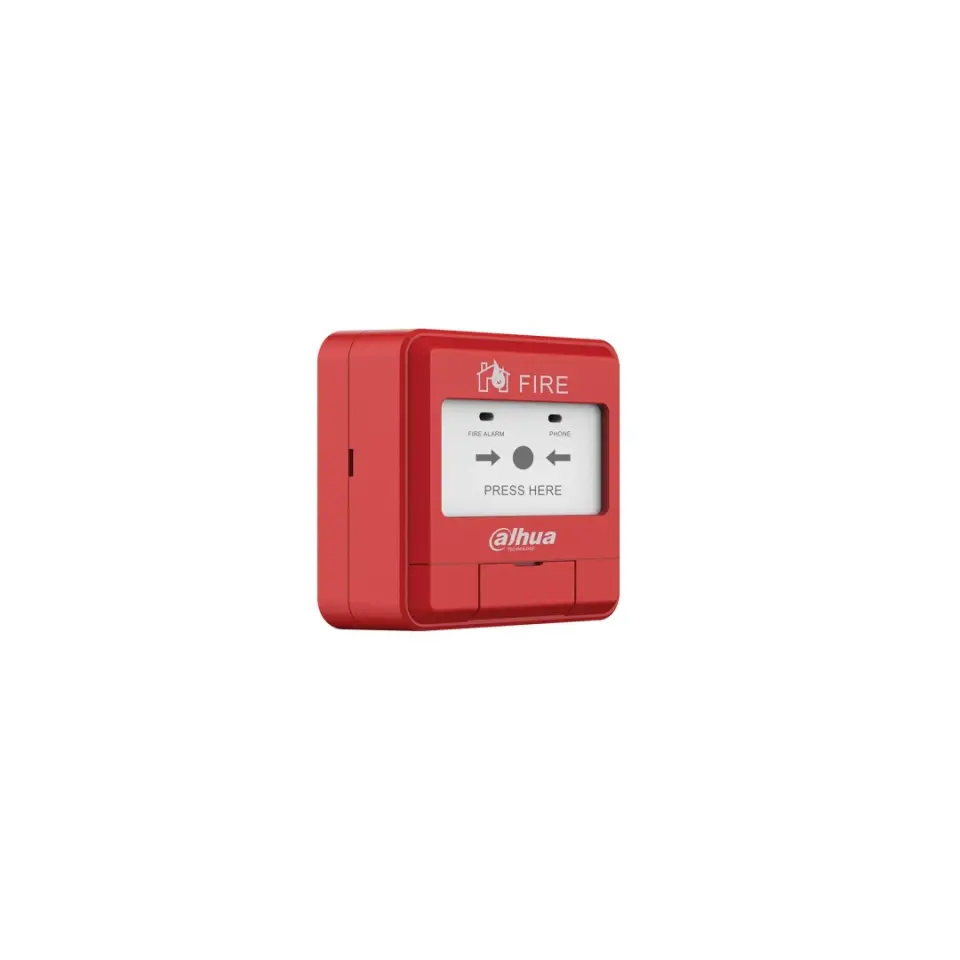

DHI-HY-1200 |
|
|
Electrical |
|
|
Working Voltage |
DC24V |
|
Current |
Monitoring current: ≤ 100μA Alarm current: ≤ 170μA |
|
Contacts Capacity |
DC30V/100mA |
|
Indicator |
Fire Alarm Red indicator flashes slowly during polling, flashes quickly during malfunction and remains lit during alarm Phone Red indicator flashes during polling and communication |
|
Communication |
|
|
Wiring |
Two-wire, polarity-free |
|
Addressing Method |
Electrical encoder |
|
Address Range |
1–254 |
|
Communication Distance |
1500 m (4921.26 ft) |
|
Environment |
|
|
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
|
Storage Temperature |
-20°C to +65°C (–4°F to +149°F) |
|
Operating Humidity |
≤ 95% RH (no condensation) |
|
Construction |
|
|
Color |
Red |
|
Dimensions (with base) |
Φ 90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73") |
|
Weight (with base) |
136 g (0.30 lb) |
